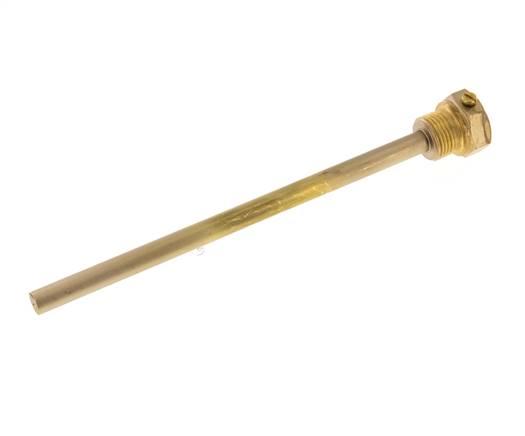

Copper Alloy G 1/2 Inch Bolt Fix Thermowell for 200mm Stem Max 160°C and 6 Bars

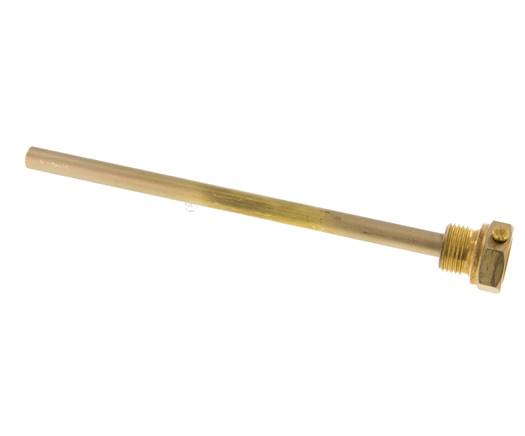

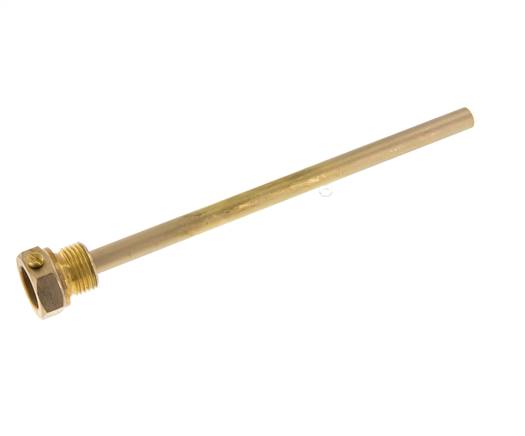

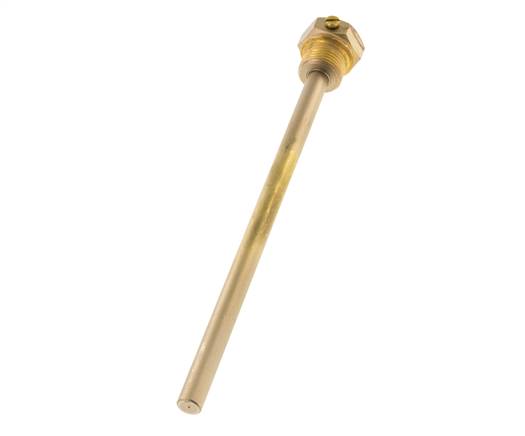

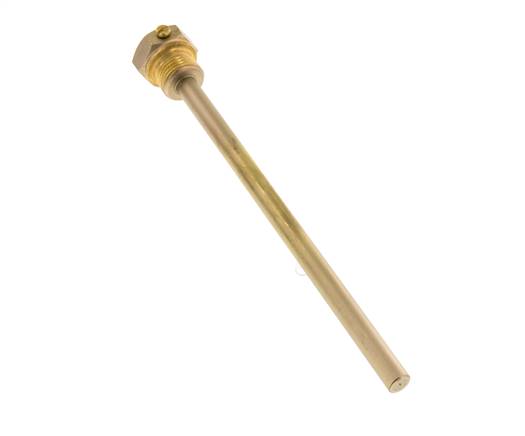

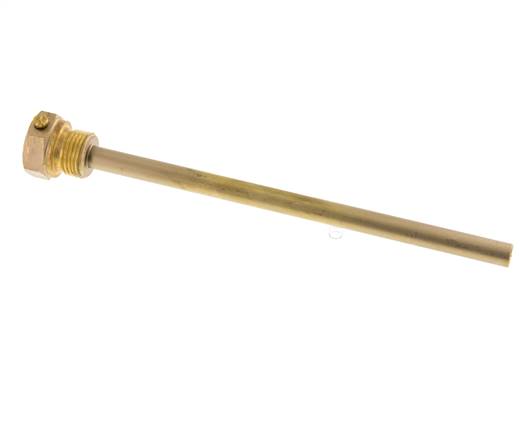

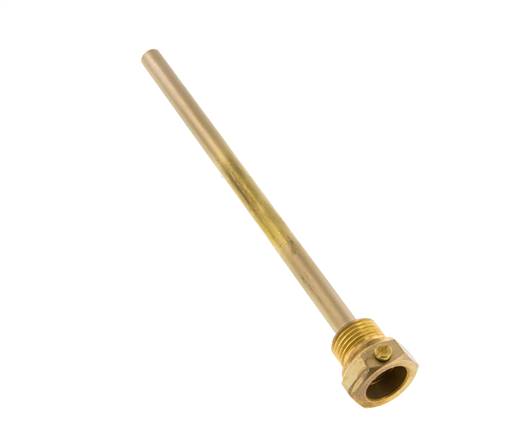

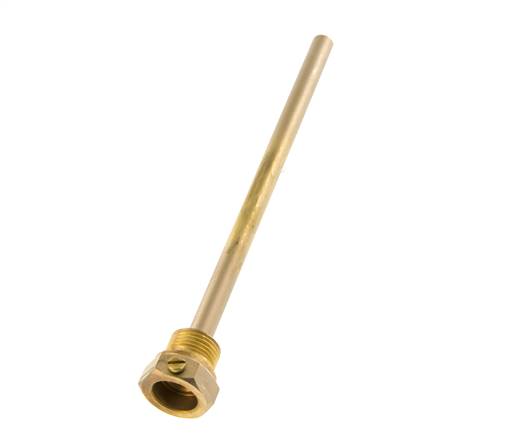

This copper alloy thermowell is designed to serve as a fitting and protection for a 200 mm long and 8 mm wide stem of a bimetallic thermometer. Mount it on your system using the G 1/2 inch female thread. To connect a thermometer simply plug it in and fix it with the bolt located on the head of the thermowell. This thermowell can withstand a maximum temperature of 160°C and a maximum operating pressure of 6 bar.

Pros:

• Protects the thermometer's stem from the media pressure
• Allows thermometer removal/replacement without stopping the process
• Easy to connect and disconnect a bimetallic thermometer
• Able to withstand temperatures up to 160°C

Cons:

• Not suitable for aggressive media

TWA series

The TWA series consists of stainless steel, copper and st35 steel thermowells designed to protect bimetallic thermometers from the media pressure and make their mounting and replacement easier. These thermowells accept the thermometers via plug-in connection and fix them with a bolt. The thermowells are either equipped with a G 1/2 inch female thread for connection or designed to be welded into the system. The copper alloy thermometers are suitable for temperatures of up to 160°C and maximum operating pressure of up to 6 bar while stainless steel thermometer can withstand 600°C and 25 bar operating pressure.
