Schutzrohr aus Edelstahl G 1/2 Zoll mit Bolzenbefestigung für 63-mm-Schaft Max. 600°C und 25 bar

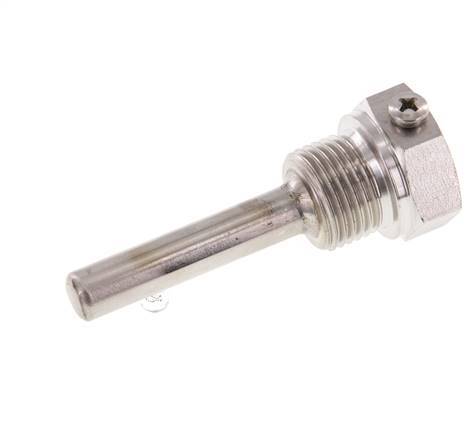

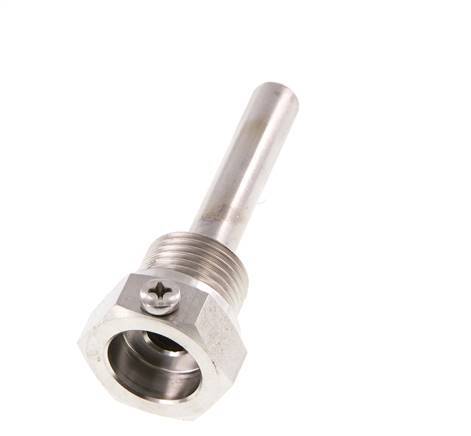

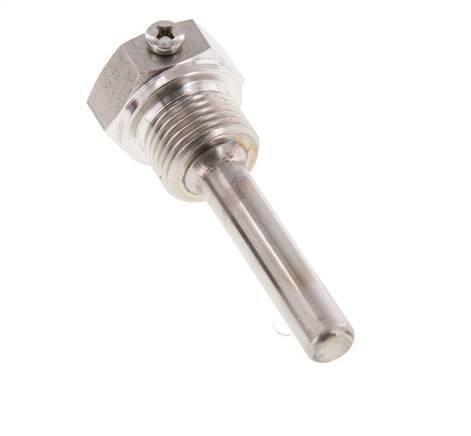

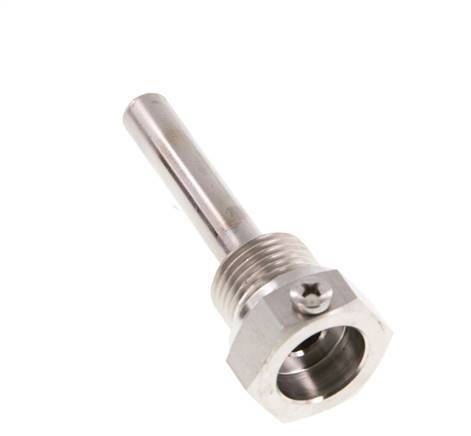

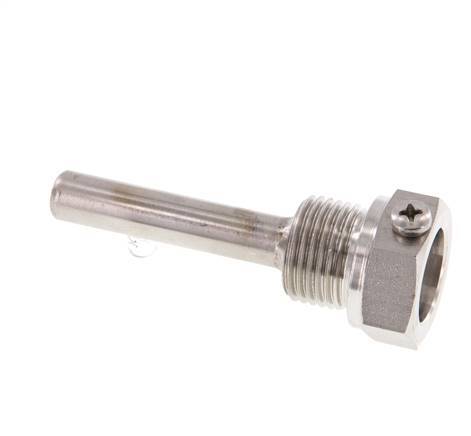

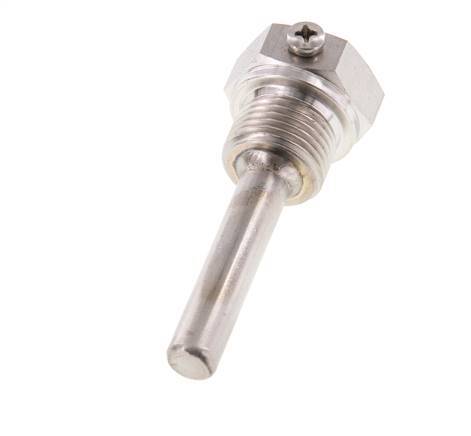

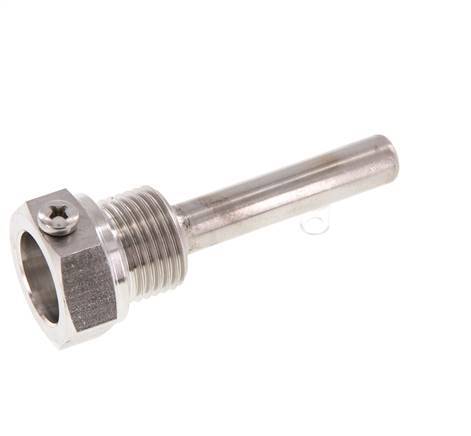

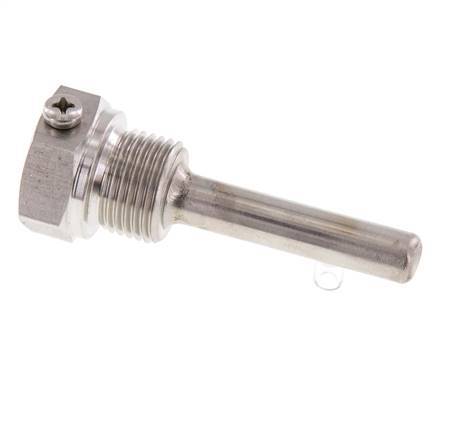

This stainless steel thermowell is designed to serve as a fitting and protection for a 63 mm long and 8 mm wide stem of a bimetallic thermometer. Mount it on your system using the G 1/2 inch female thread. To connect a thermometer simply plug it in and fix it with the bolt located on the head of the thermowell. This thermowell can withstand a maximum temperature of 600°C and a maximum operating pressure of 25 bar.
- Regulärer Preis
- €51,44
- Regulärer Preis
- €43,23
Beschreibung
This stainless steel thermowell is designed to serve as a fitting and protection for a 63 mm long and 8 mm wide stem of a bimetallic thermometer. Mount it on your system using the G 1/2 inch female thread. To connect a thermometer simply plug it in and fix it with the bolt located on the head of the thermowell. This thermowell can withstand a maximum temperature of 600°C and a maximum operating pressure of 25 bar.
Pros:
- Protects the thermometer's stem from the media pressure
- Allows thermometer removal/replacement without stopping the process
- Easy to connect and disconnect a bimetallic thermometer
- Able to withstand temperatures up to 600
- Suitable for aggressive media applications
TWA series
The TWA series consists of stainless steel, copper and st35 steel thermowells designed to protect bimetallic thermometers from the media pressure and make their mounting and replacement easier. These thermowells accept the thermometers via plug-in connection and fix them with a bolt. The thermowells are either equipped with a G 1/2 inch female thread for connection or designed to be welded into the system. The copper alloy thermometers are suitable for temperatures of up to 160°C and maximum operating pressure of up to 6 bar while stainless steel thermometer can withstand 600°C and 25 bar operating pressure.
